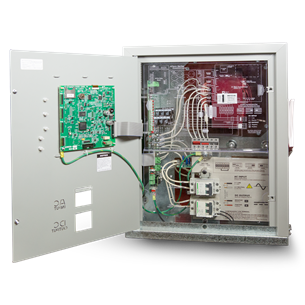

ATevo Series Stationary Float Battery Charger
HindlePower's ATevo continues the AT series legacy of being the industry's most trusted operational stationary float battery charger. Utilizing proven SCR technology, ATevo is designed and manufactured with the same superior quality and reliability you've come to expect from AT series chargers. Equipped with the same AT Series features, the ATevo provides a simple user experience allowing for a "set it and forget it" approach to battery charging. New features and expandability will enable the utility to meet today's evolving operational and reliability issues.
Easy to install. Easy to operate. Easy to maintain.
Features
- Same legacy control as AT10/AT30 product
- Standard features including: Digital Ground Fault Alarm/Metering, AC Ripple Alarm, End of Discharge Alarm, Rectifier Over Temperature Alarm, and More

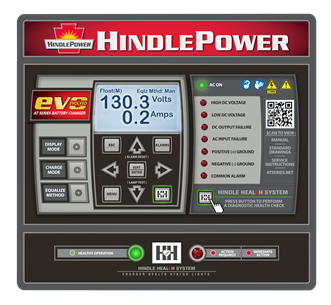

- Fully Graphical LCD
- Digital Metering and Event Logging
- Quick and Easy Field Upgradable Firmware
- 3 Levels of Password Protection
- Easy Expandable Platform
- Downloadable Manual via QR Code
- Multiple Communications Platforms such as DNP, MODBUS, IEC61850
HOW TO VIDEOS
HindleHealth System
Right Out Of The Box!
Interactive LCD Display
Advanced Options
Data logging/event recording
5-Year Warranty and Made in the U.S.A.
CUSTOM ENGINEERING
Specification
AC Input Voltage
120, 208, 240, 480 | | 220, 380/416 @ 50-60Hz
AC Input Voltage Tolerance
+10%, -12%
AC Input Frequency Tolerance
±5%
AC Input Efficiency
85-90% typical for 130Vdc at 50-100% load
DC Output Voltage Ratings
24, 48, 130 or 260* Vdc nominal (*260Vdc - 6,12 Adc only )
DC Output Continuous Rating
110% rated current at maximum equalize voltage at -10 to +50ºC
DC Output Transient Rating
Per NEMA PE-5
DC Output Current Limit Adjustment Range
50% to 110% rated output
DC Output Voltage Regulation
±0.25% for line, load and temp. variations (*Regulation at max. extended equalize voltages may not meet ±0.25%)
Electrical Noise
32dBrnc
DC Output Ripple: 24/48Vdc
Filtered on battery 30mVrms | Filtered off battery 1% Vrms | Battery Eliminator 30mVrms
DC Output Ripple: 130Vdc
Filtered on battery 100mVrms |Filtered off battery 2% Vrms | Battery Eliminator 100mVrms | Super Eliminator 30mVrms
DC Output Ripple: 260Vdc
Filtered on battery 200mVrms | Filtered off battery 2% Vrms | Battery Eliminator 200mVrms
DC Output Surge Withstand Capability
Designed to meet IEEE-472, ANSI C37.90a
3rd Party Approvals
NEMA PE5 | CSA | FCC | CE
Seismic Certification
IEEE 693/IBC CBC
Operating Ambient Temperature
14°F to 122°F (-10°C to 50°C) w/o derating
Operating Altitude
10,000 feet (3,000 meters) above sea level without derating
Relative Humidity
0% to 95% (without condensation)
Audible Noise
Less than 65 dBA at any point 5ft (1.5m) from any vertical surface of enclosure
Monitoring
HindleHealth® System
Documentation
ATevo SINGLE PHASE DRAWING PACKAGES
All enclosures are rated NEMA 1

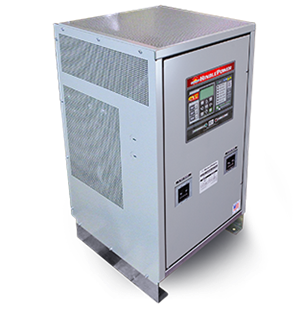

- 5054 Style Enclosure
- 5070 Style Enclosure
DC Voltage |
DC Amps |
w/ common options |
w/out common options |
|---|---|---|---|
|
24 |
6 to 25 |
JH0011-21 |
JH0011-01 |
|
24 |
30 to 50 |
JH0011-22 |
JH0011-02 |
|
24 |
75 to 100 |
JH0011-24 |
JH0011-04 |
|
48 |
6 to 25 |
JH0011-21 |
JH0011-01 |
|
48 |
30 to 50 |
JH0011-22 |
JH0011-02 |
|
48 |
75 to 100 |
JH0011-24 |
JH0011-04 |
|
130 |
6 to 25 |
JH0011-21 |
JH0011-01 |
|
130 |
30 |
JH0011-26 |
JH0011-06 |
|
130 |
40 to 50 |
JH0011-23 |
JH0011-03 |
|
130 |
75 |
JH0011-24 |
JH0011-04 |
|
260 |
6 to 12 |
JH0011-21 |
JH0011-01 |
|
260 |
16 to 25 |
JH0011-25 |
JH0011-05 |
ATevo THREE PHASE DRAWING PACKAGES
All enclosures are rated NEMA 1
- 5070 Style Enclosure
- 5030 Style Enclosure
- 163 Style Enclosure
- 198 Style Enclosure
DC Voltage |
DC Amps |
w/ common options |
w/out common options |
|---|---|---|---|
|
24 |
50 |
JH0012-21 |
JH0012-01 |
|
24 |
75 to 100 |
JH0012-22 |
JH0012-02 |
|
24 |
125 to 300 |
JH0012-24 |
JH0012-04 |
|
24 |
400 to 600 |
JH0013-21 |
JH0013-01 |
|
24 |
800 to 1000 |
JH0013-22 |
JH0013-02 |
|
48 |
50 |
JH0012-21 |
JH0012-01 |
|
48 |
75 to 100 |
JH0012-22 |
JH0012-02 |
|
48 |
125 to 300 |
JH0012-24 |
JH0012-04 |
|
48 |
400 to 500 |
JH0013-21 |
JH0013-01 |
|
48 |
600 to 1000 |
JH0013-22 |
JH0013-02 |
|
130 |
25 to 50 |
JH0012-21 |
JH0012-01 |
|
130 |
75 |
JH0012-22 |
JH0012-02 |
|
130 |
100 |
JH0012-23 |
JH0012-03 |
|
130 |
125 to 200 |
JH0012-24 |
JH0012-04 |
|
130 |
250 to 400 |
JH0013-21 |
JH0013-01 |
|
130 |
500 to 800 |
JH0013-22 |
JH0013-02 |
|
260 |
16 to 25 |
JH0012-21 |
JH0012-01 |
|
260 |
50 to 100 |
JH0012-23 |
JH0012-03 |
|
260 |
150 to 200 |
JH0013-21 |
JH0013-01 |
|
260 |
300 to 400 |
JH0013-22 |
JH0013-02 |
