ADVANCED INTEGRATIONS Mobile Battery Box
Mobile Battery Box

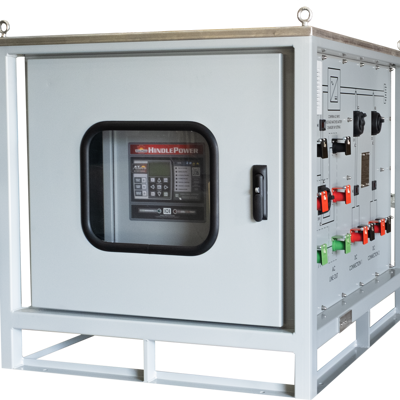

The Mobile Battery Box is a compact, utility grade DC power solution engineered in collaboration with electrical utilities for rapid deployment during substation maintenance, switchgear upgrade, and emergency response situations.
Designed to deliver reliable stationary DC power wherever it's needed, the Mobile Battery Box provides a flexible and scalable alternative to traditional mobile trailer solutions- reducing cost, complexity, and deployment time.
AC Input Voltage: 120/208/240 VAC 1ph configurations
DC Voltage Options: 48VDC or 130VDC

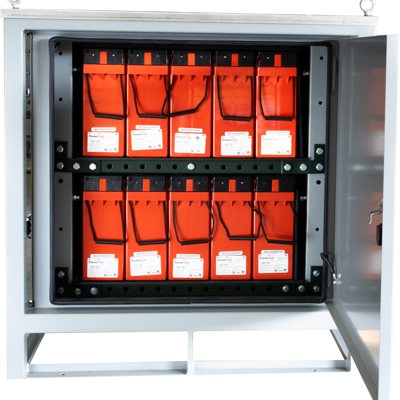

Battery Type: VRLA (Valve-Regulated Lead Acid), 200Ah Nominal

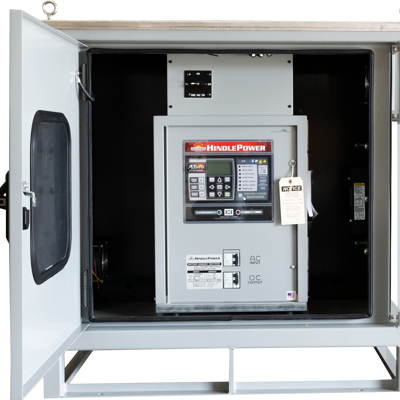

Battery Charger: Integrated ATevo Battery Charger
Enclosure Type: NEMA 3R, ANSI 61 gray powder coated steel
Dual DC Output: Dual Independent, breaker-protected DC Outputs with metering
AC Input & Output: Integrated for field flexibility with meter
Thermal Management: Passive Ventilation with Integrated purge fan system
Lifting and Handling: Integrated lifting eyes and forklift access base
Documentation
Mobile Battery Box Description Documents |
Doc Number |
|---|---|
|
Drawing Package |
JH0003-MB |
