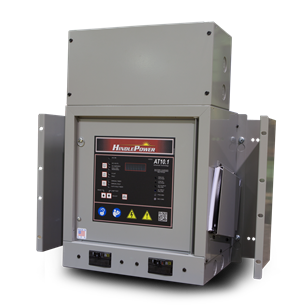

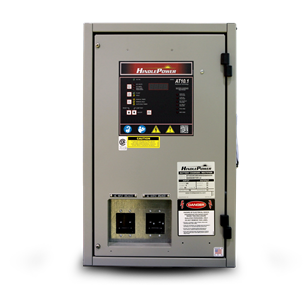

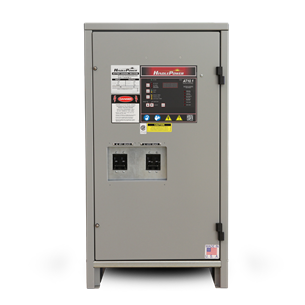

AT10.1 Series Stationary Float Battery Charger
Stationary Float Battery Charger
AT10.1 Series
The AT10.1 and AT30, are the industries most trusted and easiest operational single and three phase float battery chargers. Proven reliability and ease of set up and operation have made this series the ‘gold standard’ for all stationary battery charging applications.
- Input voltage from 120-600Vac, 50/60Hz
- DC Voltages of 12, 24, 48 and 130Vdc
- Output current from 6-100A
- SCR based rectification technology
- Microprocessor / Digital Control
- CSA-NRTL/C Certified
Common applications
Industries Served
Time Tested
Proven Reliability
Gold Standard
Market Leader
Fully compliant
Assists with NERC compliance
Tailored to you
Fully Customizable
Made in the U.S.A.
5-Year Warranty
Specification
AC Input Voltage (Group 1)
120, 208, 220, 240, 380/416, 480, 550-600 @ 60 Hz
AC Input Voltage (Group 2)
120, 208, 220, 2440, 380, 480, 416, 550-600, @ 50-60Hz
Input Tolerance
(+10%) (-12%)
Frequency Tolerance
±5%
Efficiency
85-90% | typical for 130Vdc @ 50-100% load
Voltage Ratings
12, 24, 48,130VDC, nominal
Current Ratings (Group 1)
6, 12, 16, 20, 25
Current Ratings (Group 2)
30, 40, 50, 75, 100
Continuous Rating
110% rated current at maximum equalize voltage at 50ºC
Current Limit Adjustment Range
50% to 110% of rated output
Voltage Regulation
±0.25% for line, load and temp. variations. (*Regulation at max. equalize voltages may not meet ±0.25%)
Ripple (12/24/48Vdc)
Unfiltered on battery 1%Vrms | Filtered on battery 30mVrms | Filtered off battery 1% Vrms | Battery Eliminator 30mVrms
Ripple (130dc)
Unfiltered on battery 2%Vrms | Filtered on battery 100mVrms | Filtered off battery 2% Vrms | Battery Eliminator 100mVrms
Electrical Noise
32dBrnc
Surge Withstand Capability
Meets IEEE-472, ANSI C37.90a
Operating Ambient Temperature
0ºF to 122ºF | (-18ºC to 50ºC) | without derating
Operating Altitude
10,000 feet (3,000 meters) above sea level without derating
Relative Humidity
0% to 95% without condensation
Audible Noise
Less than 65 dBA at any point 5ft (1.5m) from any vertical surface of enclosure
Third Party Approvals
NEMA PE5-1996, PE 5-1997(R2003) | NEMA-1/IP20 type standard enclosure | CSA C22.2
Third Party Approvals (cont.)
NRTL/C - UL 1012/UL 1564 | Seismic qualified | FCC | CE | ABS
Documentation
AT10.1 Drawing Packages
All enclosures are rated NEMA 1
- 586 Style Enclosure
- 594 Style Enclosure
- 5017 Style Enclosure
- 5018 Style Enclosure
DC Voltage |
DC Amps |
w/ common options |
w/out common options |
|---|---|---|---|
|
12 |
6 to 25 |
JH0014-21 |
JH0014-01 |
|
12 |
30 to 50 |
JH0014-23 |
JH0014-03 |
|
12 |
75 to 100 |
JH0014-24 |
JH0014-04 |
|
24 |
6 to 25 |
JH0014-21 |
JH0014-01 |
|
24 |
30 to 50 |
JH0014-23 |
JH0014-03 |
|
24 |
75 to 100 |
JH0014-24 |
JH0014-04 |
|
48 |
6 to 12 |
JH0014-21 |
JH0014-01 |
|
48 |
16 to 25 |
JH0014-22 |
JH0014-02 |
|
48 |
30 to 50 |
JH0014-23 |
JH0014-03 |
|
48 |
75 to 100 |
JH0014-24 |
JH0014-04 |
|
130 |
6 |
JH0014-21 |
JH0014-01 |
|
130 |
12 to 25 |
JH0014-22 |
JH0014-02 |
|
130 |
30 |
JH0014-23 |
JH0014-03 |
|
130 |
40 to 75 |
JH0014-24 |
JH0014-04 |
